Richard Grey Pro II Power Deliery
- Description
- Specification
Description
Parallel Power Delivery for Load Impedance Matching

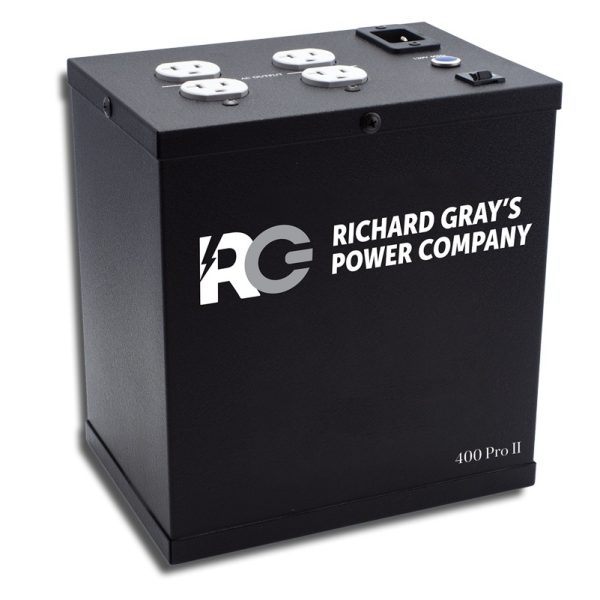

The RGPC 400 Pro II retains its original Parallel Power performance, and its compact design fits conveniently behind an equipment rack.
To receive the maximum performance install the RGPC 400 Pro II as close as possible to the AV equipment. The RGPC 400 Pro II utilizes Balanced Surge Protection Design (SPD) to ensure Bidirectional Protection and Reduced Ground Interference.
Features & Benefits
- High current on demand
- Balanced AC surge protection
- Resettable circuit breaker
- Compact design
- Compatible with UL1449 3rd edition for Type 3 locations
- Indicator lights
Applications
- All AV equipment
- Smaller systems
- Multiple units on same circuit yield increased performance
- Installations with multiple circuits
- For crisp and flawless AV experience
|
Specifications |
400 Pro 120/120 |
400 Pro 240/240 |
|
Dimensions (WHD) |
8.5 x 9 x 6 inches |
8.5 x 9 x 6 inches |
|
Net weight |
18 lbs |
18 lbs |
|
Mounting |
Stand alone Floor / Shelf |
Stand alone Floor / Shelf |
|
Power Cord (Detachable) |
6 ft, 12 AWG, NEMA 5-15P |
6 ft, 12 AWG, Euro Schuko Plug |
|

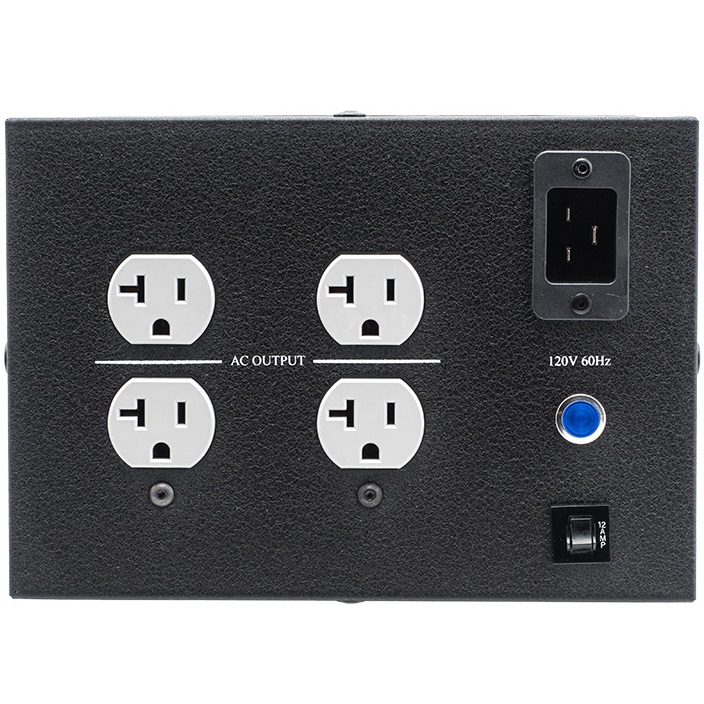

Outlets |
4 (NEMA 5-20R) |
4 Euro Shuko |
|
Input Voltage |
120 VAC |
240 VAC |
|
Output Voltage |
120 VAC |
240 VAC |
|
Frequency |
60 HZ |
50 HZ |
|
Output Power |
12 A (1,440 Watts) |
12 A (2,880 Watts) |
|
Technology |
Parallel Power Delivery |
Parallel Power Delivery |
|
AC Surge Protection (type 3 locations) |
Balanced |
Balanced |
|
Efficiency |
>99% |
>99% |
|
Cooling |
Convectional |
Convectional |
|
Indicator Light |
Blue LED |
Blue LED |
|
Storage Temperature |
-40° C to 85° C |
-40° C to 85° C |
|
Operating Temperature |
-40° C to 65° C |
-40° C to 65° C |
